PRODUCT BROCHURE

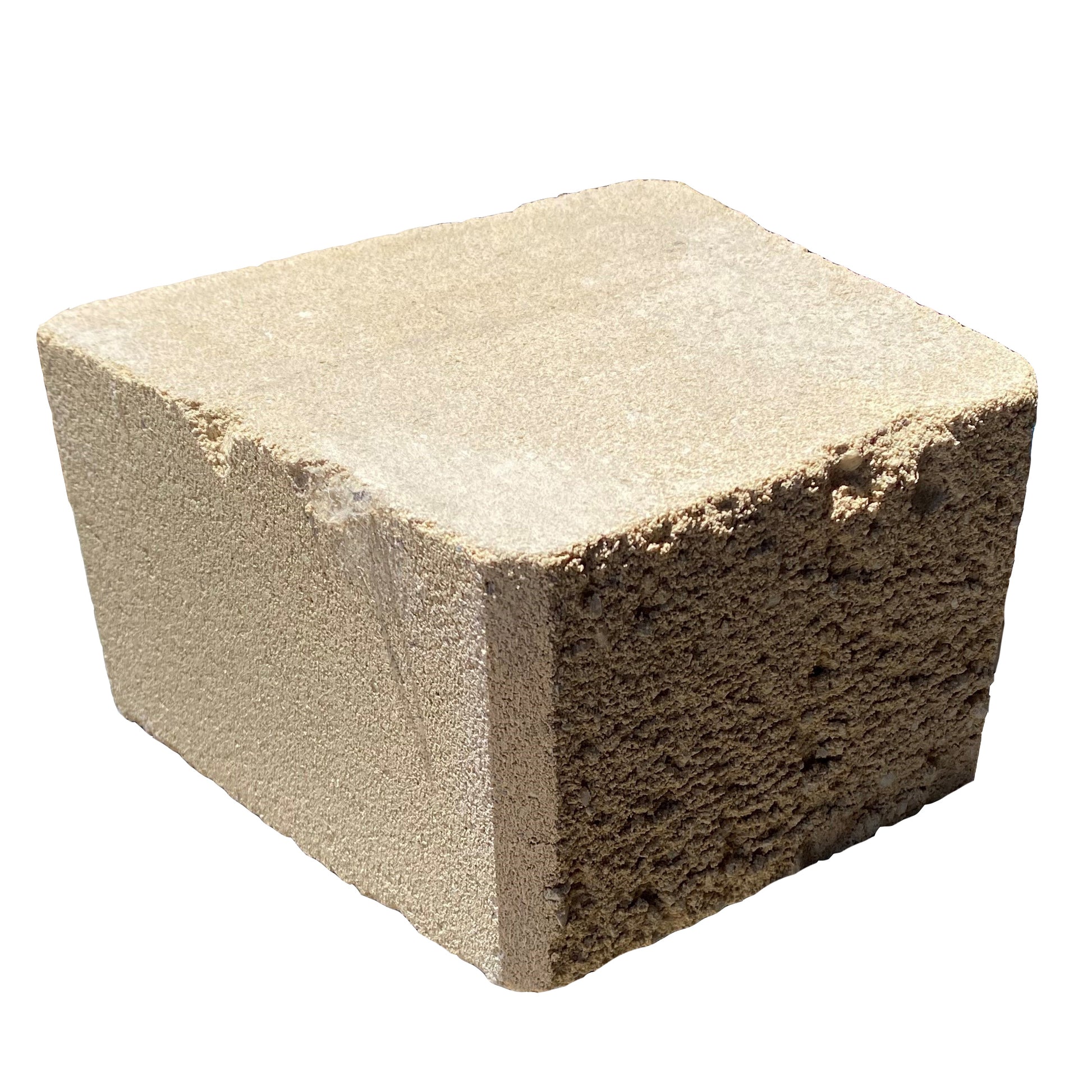

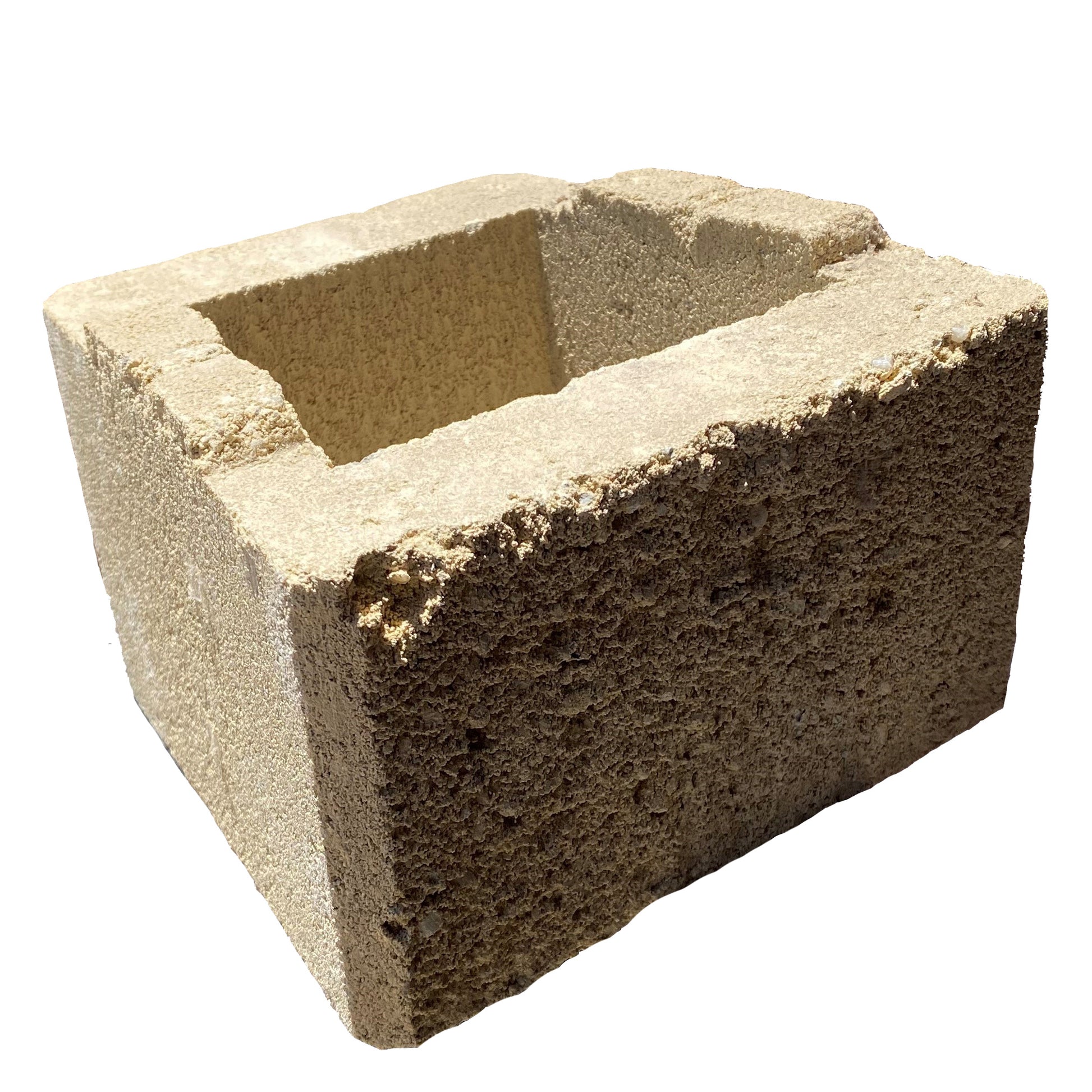

Our Abradedface Gardenstone Wall Blocks were developed from our larger Norfolk Wall blocks for smaller residential projects where ease of construction and cost are more important. To make them lighter and easier to handle, Gardenstone™ blocks are nearly 60% smaller than the  Norfolk and hollow except for the capping blocks which are solid.

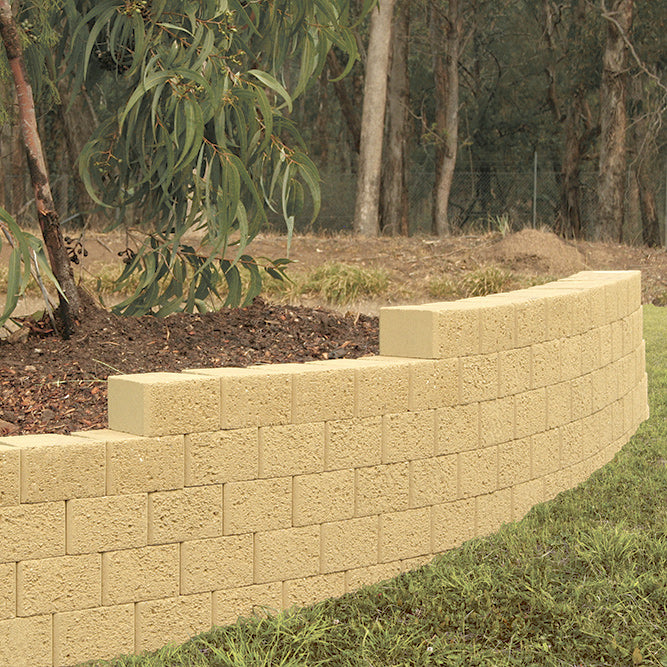

The smaller size of the Abradedface Gardenstone™ blocks makes them ideal for lower retaining walls, garden edging and tighter curves.

CALCULATING BLOCK QUANTITIES – Example Wall 1

10.0m long x 0.48m high = 4.8m2 x 40 blocks per m2 = 192 block overall

LESS 10 lineal metres x 4.8 capping blocks per metre = 48 capping blocks

Blocks required to complete job = 144 Abradedface Gardenstone Blocks + 48 Abradedface Gardenstone Capping Blocks

Continual long face (210mm) in a straight line

there are 4.8 blocks per lineal m and 40 blocks per m2.

Alternating long face (210mm) and short face (160mm) in a straight line

there are 5.4 blocks per lineal metre.



PLEASE NOTE:

Gardenstone Abradedface blocks should not be used for walls over 4 courses high from ground level (exclude buried blocks) plus capping and are not suitable for load bearing walls. For these instances please refer to the ‘NORFOLK’ or ‘TASMAN’ Retaining wall product.
